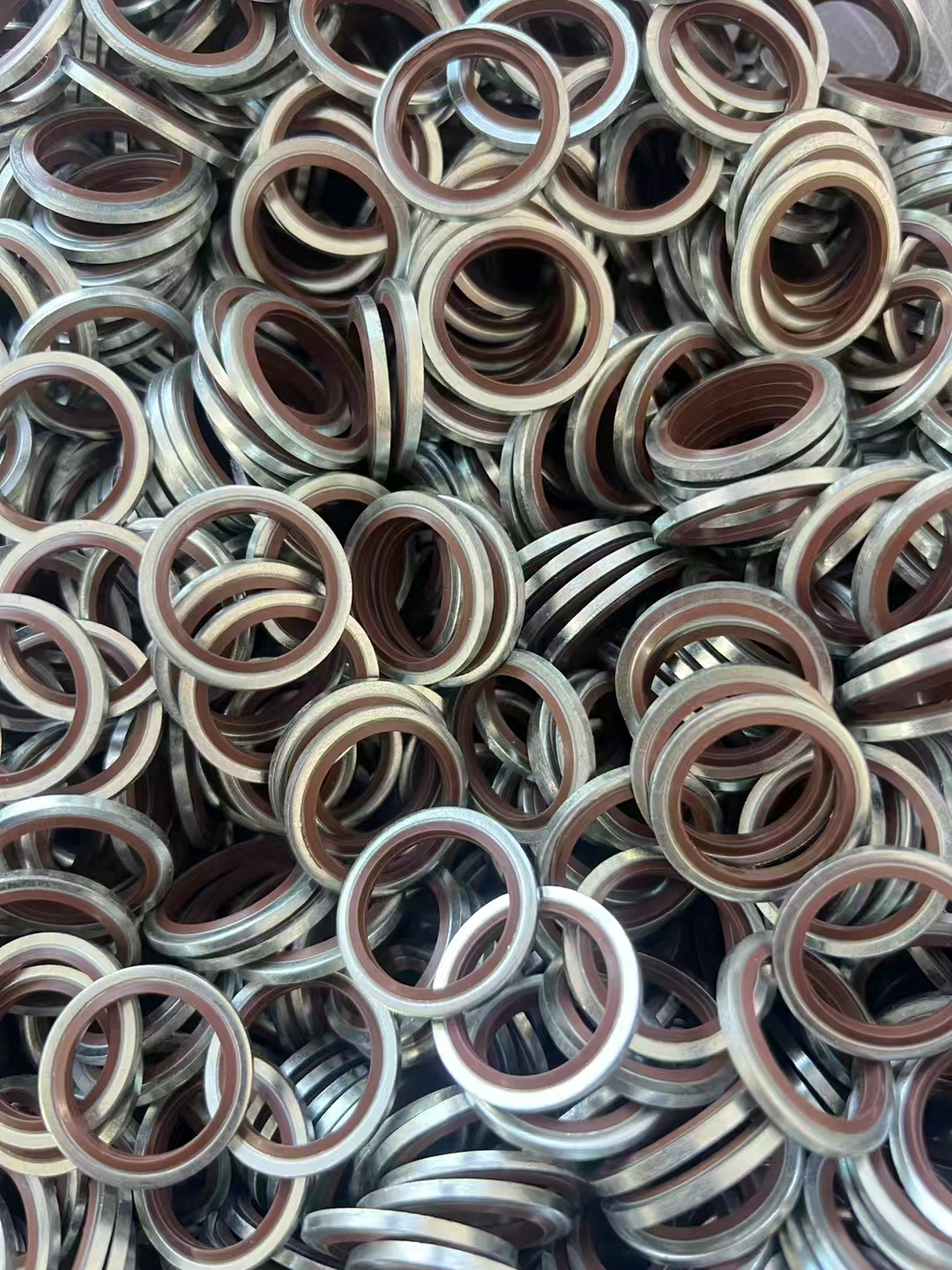

Full package bonded seal
Description: made of metal gasket and rubber composite, with oil as the medium for threaded pipe joint and plug sealing, working pressure of 400Ka/CM(39.2Mpa), operating temperature between -25 and 250. The washer is the part between the connecting piece and the nut. Generally a flat metal ring, used to protect the surface of the connector from the nut scratch, to disperse the pressure of the nut on the connector.
|
Size No. |
ID*OD*Thickness, mm |
|
M6 |
6.7*11.8*2 |
|
M8 |
8.7*13.8*2 |
|
M10 |
10.7*15.8*2 |
|
M12 |
14.7*19.9*2 |
|
M16 |
16.7*21.8*2 |
|
M18 |
18.7*24.8*2 |
|
M20 |
20.7*27.8*2 |
|
M22 |
22.7*29.8*2 |
|
M24 |
24.7*31.8*2 |
|
M27 |
27.7*34.8*2 |
|
M30 |
30.7*37.8*2 |
|
M33 |
33.7*41.8*2 |
|
M36 |
36.7*45.8*2 |
|
M42 |
42.7*52.8*2 |
|
M48 |
48.7*59.8*2 |

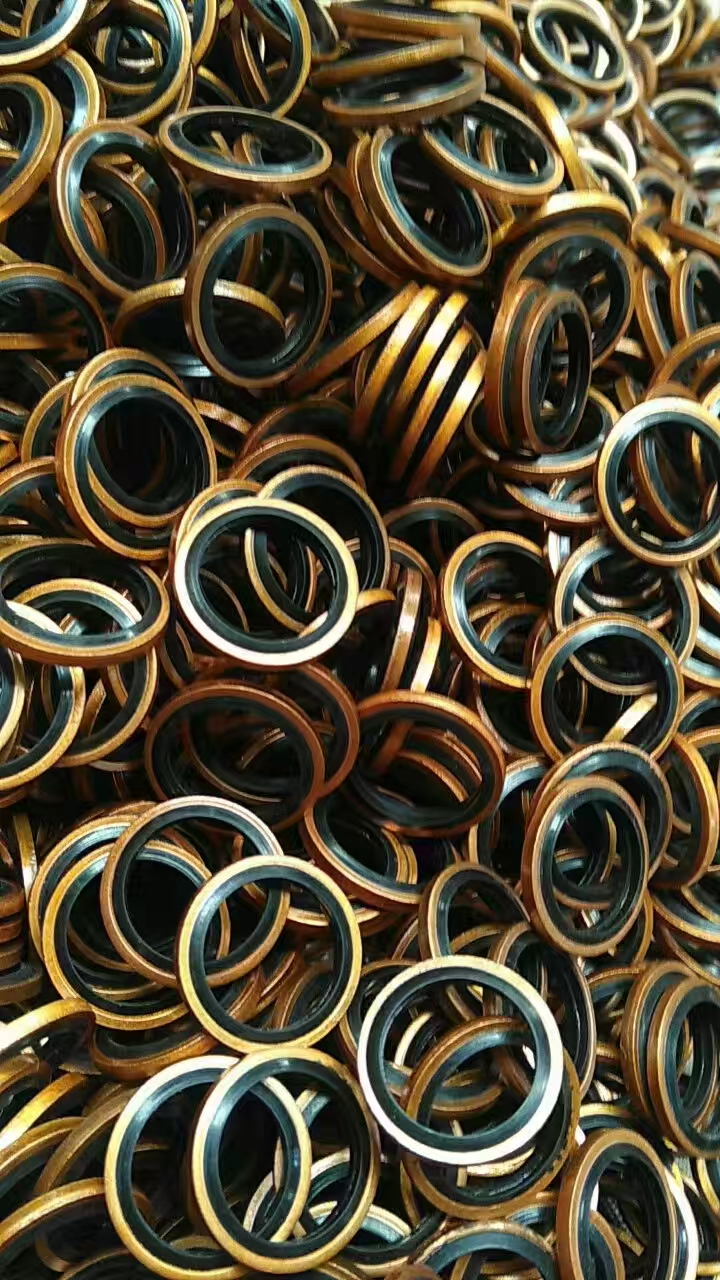

Half package bonded seal
Size details:
|
Size No. |
ID*OD*Thickness, mm |
|
M6 |
6.7*11.8*2 |
|
M8 |
8.7*13.8*2 |
|
M10 |
10.7*15.8*2 |
|
M12 |
14.7*19.9*2 |
|
M16 |
16.7*21.8*2 |
|
M18 |
18.7*24.8*2 |
|
M20 |
20.7*27.8*2 |
|
M22 |
22.7*29.8*2 |
|
M24 |
24.7*31.8*2 |
|
M27 |
27.7*34.8*2 |
|
M30 |
30.7*37.8*2 |
|
M33 |
33.7*41.8*2 |
|
M36 |
36.7*45.8*2 |
|
M42 |
42.7*52.8*2 |
|
M48 |
48.7*59.8*2 |

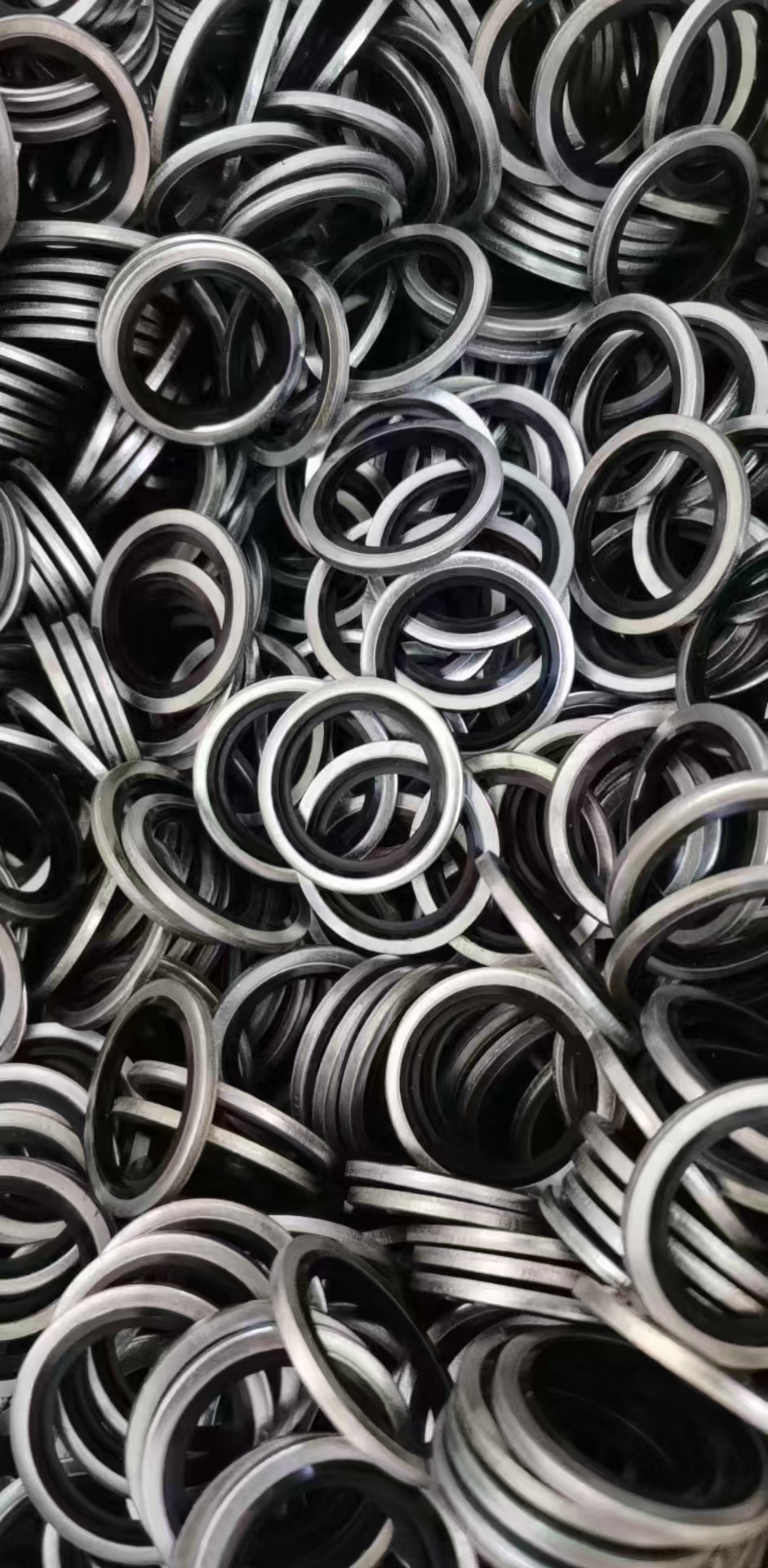

Inch bonded gasket
No special processing of the sealing tank position, is the ideal part for fast and automatic installation, operating temperature -30℃~100℃. The working pressure shall not exceed 39.2mpa.
|
Inch size |
MM size (ID*OD*thickness) |
|
G1/8’’ |
15.88*10.37*2 |
|
G1/4’’ |
20.57*13.8*2 |
|
G3/8’’ |
23.8*17.3*2 |
|
G1/2’’ |
28.58*21.54*2.5 |
|
G5/8’’ |
31.75*23.43*2.5 |
|
G3/4’’ |
34.95*37.05*2.5 |
|
G1’’ |
42.8*33.89*2.5 |
|
G1-1/4’’ |
52.38*42.93*2.5 |
|
G1-1/2’’ |
58.6*48.44*2.5 |
