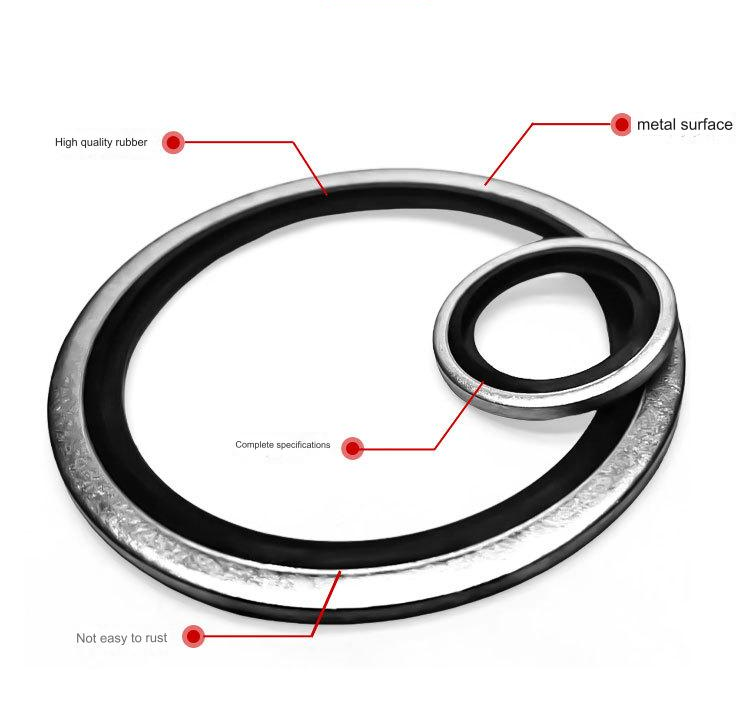

| 【Product parameters】 | |||
| Product name: Bonded seal | |||
| Implementation standards: BSP/BSTP | |||
| Size: M04-M30 | |||
| Work pressure:≤40Mpa | |||
| Product temperature resistance:-20 to +100° | |||
| Product material: Carbon steel galvanized+Rubber |
Product Classification
Full package bonded seal /half package bonded seal /copper bonded seal /galvanized bonded seal /stainless steel bonded seal
Full package bonded seal

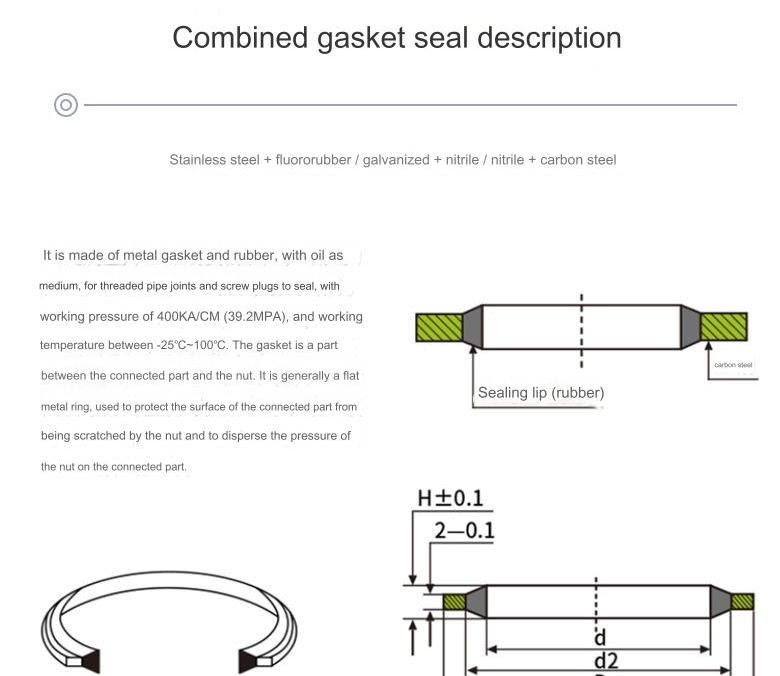

Description: made of metal gasket and rubber composite, with oil as the medium for threaded pipe joint and plug sealing, working pressure of 400Ka/CM(39.2Mpa), operating temperature between -25 and 250. The washer is the part between the connecting piece and the nut. Generally a flat metal ring, used to protect the surface of the connector from the nut scratch, to disperse the pressure of the nut on the connector.

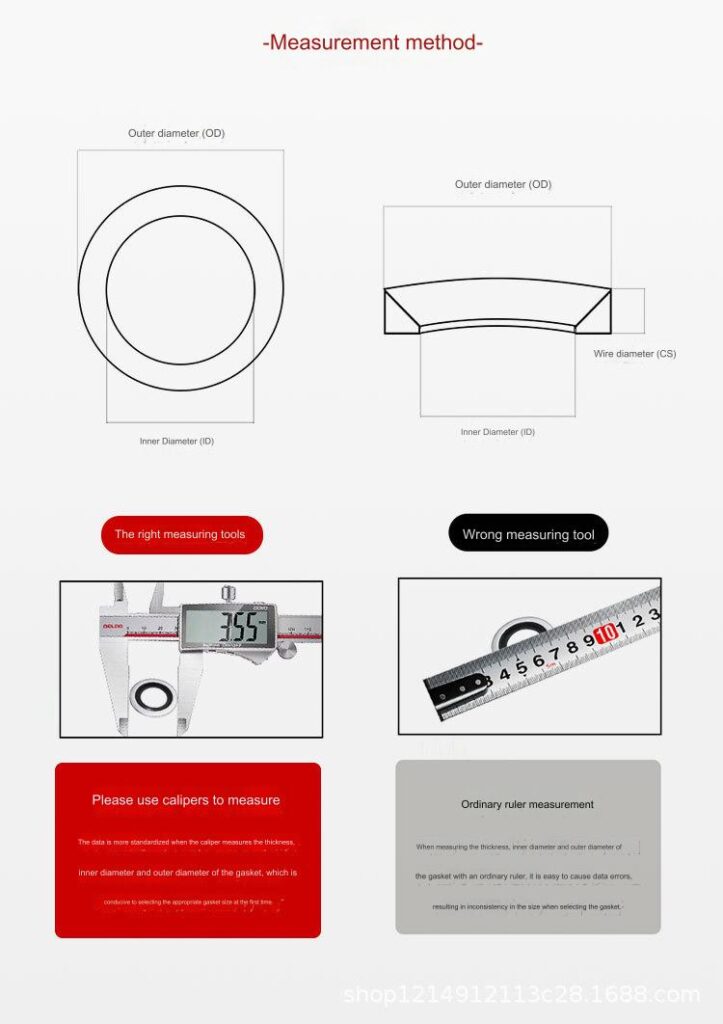

Size No. | ID*OD*Thickness, mm |
M6 | 6.7*11.8*2 |
M8 | 8.7*13.8*2 |
M10 | 10.7*15.8*2 |
M12 | 14.7*19.9*2 |
M16 | 16.7*21.8*2 |
M18 | 18.7*24.8*2 |
M20 | 20.7*27.8*2 |
M22 | 22.7*29.8*2 |
M24 | 24.7*31.8*2 |
M27 | 27.7*34.8*2 |
M30 | 30.7*37.8*2 |
M33 | 33.7*41.8*2 |
M36 | 36.7*45.8*2 |
M42 | 42.7*52.8*2 |
M48 | 48.7*59.8*2 |
Half package bonded seal
Size details:
Size No. | ID*OD*Thickness, mm |
M6 | 6.7*11.8*2 |
M8 | 8.7*13.8*2 |
M10 | 10.7*15.8*2 |
M12 | 14.7*19.9*2 |
M16 | 16.7*21.8*2 |
M18 | 18.7*24.8*2 |
M20 | 20.7*27.8*2 |
M22 | 22.7*29.8*2 |
M24 | 24.7*31.8*2 |
M27 | 27.7*34.8*2 |
M30 | 30.7*37.8*2 |
M33 | 33.7*41.8*2 |
M36 | 36.7*45.8*2 |
M42 | 42.7*52.8*2 |
M48 | 48.7*59.8*2 |
Inch bonded gasket
No special processing of the sealing tank position, is the ideal part for fast and automatic installation, operating temperature -30℃~100℃. The working pressure shall not exceed 39.2mpa.
Inch size | MM size (ID*OD*thickness) |
G1/8’’ | 15.88*10.37*2 |
G1/4’’ | 20.57*13.8*2 |
G3/8’’ | 23.8*17.3*2 |
G1/2’’ | 28.58*21.54*2.5 |
G5/8’’ | 31.75*23.43*2.5 |
G3/4’’ | 34.95*37.05*2.5 |
G1’’ | 42.8*33.89*2.5 |
G1-1/4’’ | 52.38*42.93*2.5 |
G1-1/2’’ | 58.6*48.44*2.5 |
